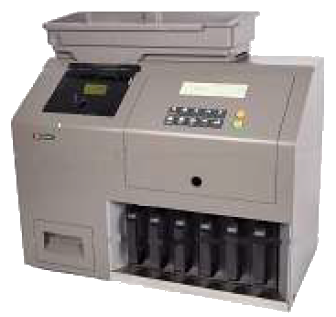

Coin counter (305-X)


22200 – 305-X Coin Sorter

Complies with EU Regulation 1210/2010 / US FCC-Regulation
5 pockets and reject
Includes :
  • Hopper
  • Coin boxes
  • Cleaning kit
  • Power cable
  • English and French user manual
  • Key chart
Physical and eletrical specifications

Mains Input Voltage
230 VAC (+5% / -15%) 50 Hz
Power Consumption
50 W Peak
35 W Operation
11 W Standby
Acoustic Noise Level
LpA < 74 dB(A) (uncertainty: 2)
LpA Standby < 1 dB(A)
Operating Temperature
10° C to 35° C (50F – 95F)
Dimensions (mm)
Height :
430 (with Hopper : 525)
Depth :
300
Width :
600
Weight
34,0Kg / 75 lbs
Coin Size Range
Diameter :
18 - 28 mm
Thickness :
1.2 – 1.8 mm


Process specifications and features

Coin Detection Sensor
Complies with EU Regulation
1210/2010/US FCC-Regulation
Count mode
Mix counting
Speed
Up to 650 coins per minute
Hopper Capacity
3.300 coins (standard US-Mix)
5.500 coins max. (dimes/cents)
Number of sorting channels
6
Bag stops
2 niveaux
1 - 9999 pièces par pochette
Memory
Count, Total and Bag contents
Individual for 8 cashiers
Communication
RS232 communication cable
External printer
External Display
